C1
BoonFeet
Product Introduction

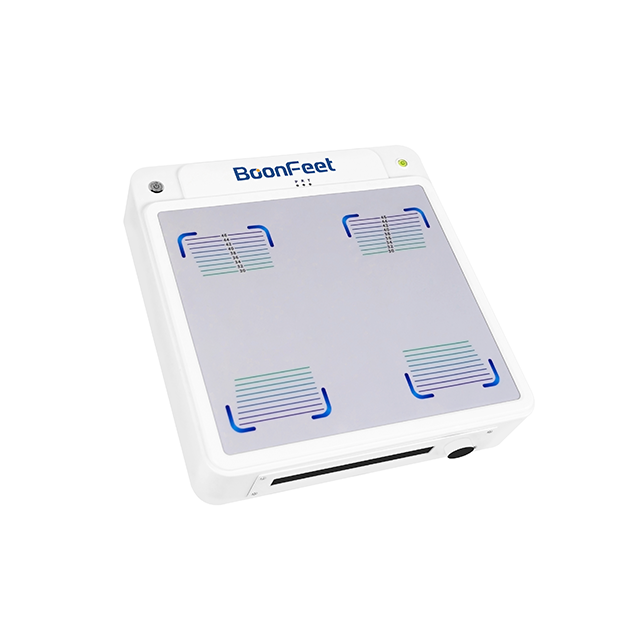

The BoonFeet foot pad customization system has two functions of plantar pressure analysis and foot pad customization. The system adopts the international advanced high-precision plantar pressure analysis technology to analyze and evaluate the user's foot arch and foot posture. At the same time, the system adopts a unique heating and setting technology, which is easy to operate and highly efficient in the process of customizing the foot pads. After 5 minutes of the on-site class, a pair of custom foot pads that completely fit the user's arch and foot shape can be obtained directly. wear.
Production Process
Specification Parameters
| Technical parameters of insole customization system | |
| Device Model | C1 |
| Made in China | Made in China |
| Device Function | The device obtains individual foot plantar pressure data through pressure analysis, and automatically generates analysis reports. At the same time, the system will recommend suitable insoles based on the customers’ foot data. The selected insoles will be heated and shaped to fit customer’s feet completely in order to solve the problem caused by imbalance force from abnormal foot or lower limbs structure. Meanwhile, it can reduce the risk of injuries of knees, spine and other parts by improving foot valgus / varus, adding arch support, increasing the comfort of the foot. |
| Evaluation Items | Arch type (normal arch, high arch, low arch, flat foot), foot type (normal foot, supination, pronation, severe pronation), plantar pressure distribution map, forefoot pressure, rearfoot pressure, peak pressure, left and right foot center of gravity, health risk tips, insole recommendation, etc. |
| Testing Report | Available to output a complete plantar pressure test analysis report |
| Acquisition Frequency | 400Hz |
| Pressure Capacity | 100N/cm² |
| Temperature | 80~120 degrees |
| Settable Heating Time | 0~12 minutes |
| Test Time | 30 seconds |
| Service Life of Sensor | ＞1000000 times |
| Display Method | 13-inch color LCD screen |
| Instrument Weight | About 40 kg |
| Operating Environment | Temperature 10℃～40℃, Humidity 30%～75% (non-condensing) |
| Power Index | Input ( AC 220V, 50Hz ) ; Output ( DC 12V, 5A ) |
| Instrument Size | 500mm x 685mm x 12.0mm ( WxDxH ± 10mm ) |
| Technical parameters of insole customization | |||
| Insole Model | N1-N5 | Walk able Distance | 800 km |
| Made in China | Made in China | Compressive Strength | ≤35% |
| Insole Material | Antibacterial coating fabric + Foam+ Polymer plastic material support plate + wear-resistant bottom | Thickness of Insole | 3-5mm |
| Thickness of Plastic | 1.5mm | ||
| Application Purpose | The custom insole supports through the foot arch, improves the distribution of plantar pressure, corrects abnormal gait, delays the progression of foot disease, reduces the compensation of various joints and tissues, and relieves foot pain. | Weight of Insole | 50-80g/piece |
| Insole Size | CN 30-48 | ||
| Hardness of Insole | 40-45°shoreC | ||
| Bearing Weight | Within 150 KG | Bending Strength | 300N |
| Temperature and Time | 120 degrees, 6 minutes | Abradability | 40,000 times without loss(Martindale method) |
